Opera MGT
Heavy-Duty Industrial Gear Head Trolley Operator
25 CYCLES/HOUR – >80 CYCLES/DAY

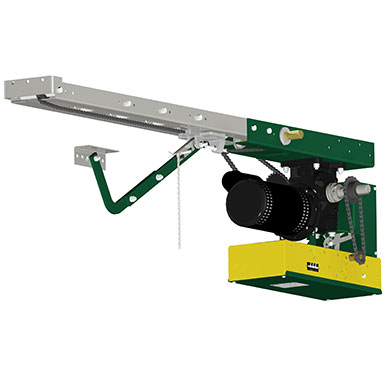

The MGT is a heavy-duty worm gear industrial trolley operator designed for use on industrial standard lift sectional doors.
It features a high starting torque continuous-duty industrial type motor, the Accu-cam® precise and quick limit adjustment feature, a drum-band type solenoid brake, and a simple slide-off electrical control box cover.
The operator is available with the new Electronic Control Board (BOARD 070) with or without the option of electrical control for MONITORED external entrapment protection devices (UL325-2010 compliant).
Features
Included Accessory
Optional Accessories
Brochure & Installation Instructions
STANDARD FEATURES
Motor: 60Hz high starting torque, continuous-duty industrial type, single phase capacitor start or 3 phase motor, open drip proof with enclosed ends or drip cover, protected against overload. Also available with 50Hz 220V 1 phase and 380V 3 phase motor, consult inside sales.
Reduction: 40:1 worm gear in oil bath reducer with air breather and sealed ball bearings. Additional step by #41 chain and sprockets. Output shaft is 1", supported by ball bearings. Output shaft speed: 100 rpm for a door travel of 10"/s (1/2 and 3/4HP), 66 rpm for a door travel of 6"/s (1 and 1.5HP).
Drive: #41 full roller chain drive. Dual, 12 gauge, pre-drilled galvanized tracks provided for doors up to 12Ft in height standard. Additional track lengths are available (max. door height acceptable for the operator limit system is 40Ft). Track spacers 3/4" steel shaft. Trolley made of cast aluminum alloy with chain tension adjustment device.
Clutch: Friction type, integrated in reducer, easily adjustable from outside.
Brake: Electrically activated drum-band type solenoid brake.
Limit System: Rotary-type oil-impregnated steel cams, commercial grade switches. Limit shaft is supported by self-lubricating bronze bushings for increased precision. Remains in time when there is a manual operation or after the motor has been removed.
Accu-cam® Feature: Precise and quick one-handed adjustment of the limits.
Corrosion Protection: Reducer, control enclosure and frames protected by baked on, long lasting enamel finish.
Warranty: 2 Years
For interior use, the Manaras Station 020 push button control has 3-button command options, Nema 1 encl, and steel enclosed housing material.
With rolling code technology, the Manaras Radio Control can be used as a hand-held control or mounted with an approximate 100 foot range.
