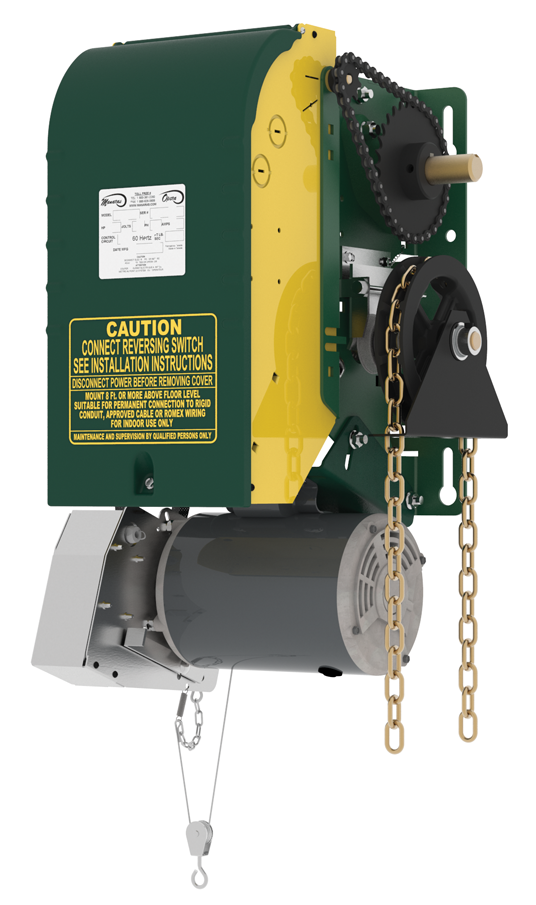

Opera Rapido RSH
Heavy-Duty Industrial Jackshaft Operator for Fast Sectional Doors
>100 CYCLES/DAY
The Rapido® RSH is a high-speed heavy-duty V-belt drive industrial operator designed for use on properly counter-balanced standard, high and vertical lift sectional doors, weighing a maximum of 750lbs1.
The Rapido® RSH offers up to 2X* the speed of the standard jackshaft operator while smoothly managing Soft-Starts and Soft-Stops, therefore reducing the wear and tear of the complete door system.
The operator can be wall or shelf mounted on either side of the door. It incorporates a chain hoist for manual operation, with a floor level engaging device.
The Manaras-Opera control is based on its legendary Electronic Control Board which delivers high performance and reliability while providing on-board control plus speed managing features.
Features
Included Accessory
Optional Accessories
Brochure & Installation Instructions
STANDARD FEATURES
Electrical Supply: Single-phase powered operator.
Motor: 60Hz high starting torque, continuous-duty, switchless motor, open drip proof, protected against overload.
Speed Managing Features: Speed managing device provides enhanced performance and speed, with soft-start and soft-stop capabilities.
Reduction: First step in reduction 5L/B V-belt drive, additional steps by chain and sprockets. Input shaft is 3/4", supported by cast iron flanged pillow block bearings. Output shaft is 1" with 1/4" keyway, supported by cast iron flanged pillow block bearings. Output shaft speed: 94 rpm standard.
Clutch: Friction type, positioned on input shaft, easily adjustable from outside.
Drive: #50 roller chain with sprockets selected for an opening door travel between 12"/s to 24"/s.
Brake: Electrically activated drum-band type solenoid brake.
Limit System: Rotary-type oil-impregnated steel cams, commercial grade switches. Limit shaft is supported by self-lubricating bronze bushings for increased precision. Remains in time when there is a manual operation or after the motor has been removed.
Accu-cam® Feature: Precise and quick one-handed adjustment of the limits.
Non-Resettable Cycle Counter: 6-digit electro-mechanical counter, mounted inside the control box, counts each complete door cycle providing valuable data for maintenance scheduling.
Corrosion Protection: Frame and control enclosure protected by baked on, long lasting enamel finish. Polymer control box cover. All shafts protected by yellow chromate coating.
Temperature Range: Working temperature between 0°C to 40°C (32°F to 104°F).
Warranty: 2 Years
For interior use, the Manaras Station 020 push button control has 3-button command options, Nema 1 encl, and steel enclosed housing material.
With rolling code technology, the Manaras Radio Control can be used as a hand-held control or mounted with an approximate 100 foot range.
