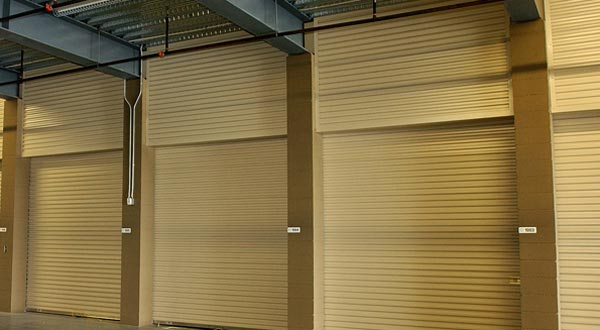

Amarr 5101 Series - Self Storage - Rolling Sheet Commercial Door

Amarr 5101 SeriesNew

26ga galvanized steel curtain
9-1/2" enclosed barrel
Steel bearing shaft support
Adjustable tensioning device
Available in widths, starting as small as 3' wide

Product Documents

Product Brochure
Installation Instructions
Warranty

Overview

Door Options

Drawings

Brochures & Install Instructions

Reviews

Overview

Perfect for most storage facilities, the Amarr 5101 series of Self-Storage doors offers excellent performance and reliability at an economical price. These easy-to-install doors are a popular choice among DIY installers of storage sheds and building projects requiring a secure opening.

Specifications Chart

	Amarr 5101	Amarr 5151	Amarr 5161
Door Thickness	N/A	N/A	N/A
Panel	N/A	N/A	N/A
Duty Rating	Light Duty	Light Duty	Light Duty
Material	Galvanized Steel	Galvanized Steel	Galvanized Steel
Material Thickness	26 ga	26 ga	24 ga
Guides	18 ga	18 ga	12 ga
Guide Depth	1.6"	1.6" or 2.3"	3"
Drum/Barrel Diameter	9.5"	9.5"	9.5"
Wind Load Rated	No	No	No
WindLock Type	N/A	N/A	N/A
Pre-assembled Features	No	No	No
Max Std Width	10'	10'	8'8"
Max Std Height	10'	12'	12'
Limited Paint Finish Warranty	25-Year	25-Year	25-Year
Limited Materials/Workmanship Warranty	1 Year	1 Year	1 Year

Features & Options

Galvalume Steel Bottom Bar with Lift Angle

Dual Lock Assembly

Heavy Duty Galvanized Steel Guides Hot Dipped for Maximum Strength and Rust Resistance

Steel Bearing Shaft Support

Adjustable Tensioning Device

LEED

Made in the USA

Environmental Assurance

Amarr garage doors are CFC, HFC, HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.
