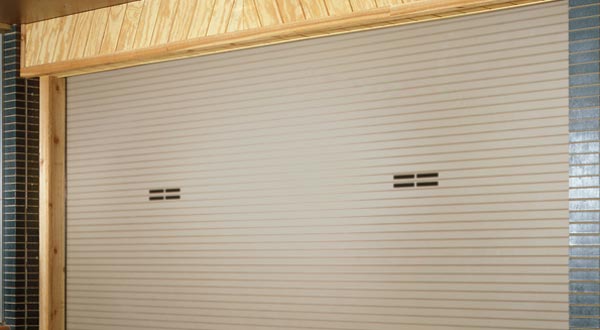

Amarr 4000 Series - Service - Rolling Slat & Grille Commercial Door

Amarr 4000 SeriesNew

Available in 24, 22, 20, or 18 Gauge Flat Slats
Powder Coated Guides and Bottom Bar Standard

Product Documents

Amarr 4000 Series
Product Brochure
Installation Instructions
Warranty

Overview

Door Options

Drawings

Brochures & Install Instructions

Reviews

Overview

The standard of the industry, the Amarr 4000 series provide excellent security and years of worry free operation. Doors are available in four steel gauges (18, 20, 22 and 24), depending on the size of the door. 123

Specifications Chart

	Amarr 4000	Amarr 4010	Amarr 4020	Amarr 4030
Door Thickness	5/8" - 3/4" (1.6 - 1.9cm)	5/8" - 3/4" (1.6 - 1.9cm)	5/8" - 3/4" (1.6 - 1.9cm)	5/8" - 3/4" (1.6 - 1.9cm)
Panel	Slat	Slat	Slat	Slat
Duty Rating	Heavy-Duty	Heavy-Duty	Heavy-Duty	Heavy-Duty
Material	Galvanized Steel	Stainless Steel	Clear Anodized Aluminum	Mill Finish Aluminum
Material Thickness	24, 22, 20,18 ga	22, 20 ga	.050"	.050"
Guides	Structural Steel Angle	Structural Steel Angle	Structural Steel Angle	Structural Steel Angle
Limited Warranty	2-Year	2-Year	2-Year	2-Year
R-Value	N/A	N/A	N/A	N/A
U-factor	N/A	N/A	N/A	N/A
Max Std Width	30'	30'	30'	30'
Max Std Height	30'	30'	30'	30'

Features & Options

Cast Iron Gears

Structural Angle Guides

Optional Plated Steel Bottom Bar Slide Locks

Optional Motor Operation

Wind Load

LEED

Made in the USA

Environmental Assurance

Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.
