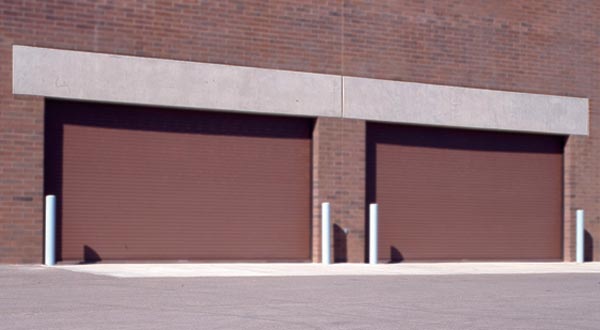

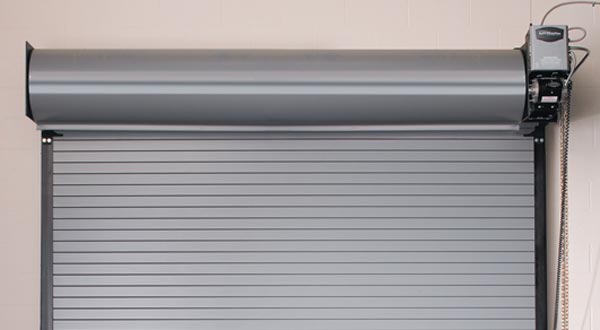

Amarr 4100 Series - Service - Rolling Slat & Grille Commercial Door

Amarr 4100 SeriesNew

R-value of 8.0.
Polyurethane insulation with Flame Spread Index of 0 and a Smoke Developed Index of 10 as tested per ASTM E84
Available in replaceable 24, 22, 20, or 18 gauge insulated flat slats

Product Documents

Amarr 4100 Series
Product Brochure
Installation Instructions
Warranty

Overview

Door Options

Drawings

Brochures & Install Instructions

Reviews

Overview

In applications where climate control is a must, the Amarr 4100 series provides maximum energy efficiency by using polyurethane insulation between the exterior and interior galvanized steel skins and full perimeter weather-stripping.

Insulation

Our polyurethane insulation has an R-value of 8.0 and is of the highest quality available with a Flame Spread Index of 0 and a Smoke Developed Index of 10 as tested per ASTM E84

Specifications Chart

	Amarr 4100	Amarr 4110	Amarr 4120	Amarr 4130
Door Thickness	1" (2.5cm)	1" (2.5cm)	1" (2.5cm)	1" (2.5cm)
Panel	Slat	Slat	Slat	Slat
Duty Rating	Extra Heavy Duty	Extra Heavy Duty	Extra Heavy Duty	Extra Heavy Duty
Material	Galvanized Steel	Stainless Steel	Clear Anodized Aluminum	Mill Finish Aluminum
Material Thickness	24, 22, 20,18 ga	22/22 ga	.040/.040"	.040/.040"
Guides	Structural Steel Angle	Structural Steel Angle	Structural Steel Angle	Structural Steel Angle
Limited Warranty	2-Year	2-Year	2-Year	2-Year
R-Value	8.0	8.0	8.0	8.0
U-factor	N/A	N/A	N/A	N/A
Max Std Width	30'	24'	24'	24'
Max Std Height	30'	30'	30'	30'

Features & Options

Cast Iron Gears

Structural Angle Guides

Foamed in place polyurethane insulation

Optional Plated Steel Bottom Bar Slide Locks

Optional Motor Operation

Wind Load

LEED

Made in the USA

Environmental Assurance

Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.
