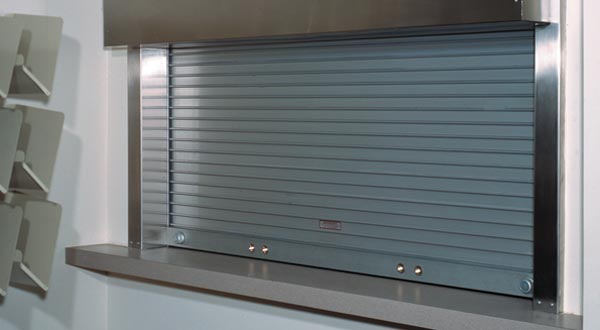

Amarr 4500 Series - Fire - Rolling Slat & Grille Commercial Door

Amarr 4500 SeriesNew

Designed to secure the retail counter opening in a fire wall while providing a clean, professional appearance while open or closed.
Up to 3 hour fire rating
Available in painted or stainless steel to fit most counter fire door specifications requirements.

Product Documents

Amarr 4500 Series
Product Brochure
Installation Instructions
Warranty

Overview

Door Options

Drawings

Brochures & Install Instructions

Reviews

Overview

Designed specifically for counter top security where a clean, professional appearance is a must, these counter shutters provides all of the UL Listed features of a full sized fire door to protect your elevated openings in fire walls

Specifications Chart

	Amarr 4500	Amarr 4501	Amarr 4510	Amarr 4511
Door Thickness	1-3/8" (4.1cm)	1-3/8" (4.1cm)	1-3/8" (4.1cm)	1-3/8" (4.1cm)
Panel	Slat	Slat	Slat	Slat
Duty Rating	Heavy Duty	Heavy Duty	Heavy Duty	Heavy Duty
Material	Galvanized Steel	Galvanized steel with integral sill and frame	Stainless Steel	Stainless steel with integral sill and frame
Material Thickness	22 ga	22 ga	22 ga	22 ga
Guides	Box Shaped Steel	Box Shaped Steel	Box Shaped Steel	Box Shaped Steel
Limited Warranty	2-Year	2-Year	2-Year	2-Year
R-Value	N/A	N/A	N/A	N/A
U-factor	N/A	N/A	N/A	N/A
Max Std Width	14'	10'	14'	10'
Max Std Height	9'	6'	9'	6'

Features & Options

Structural Angle Guides

Optional Plated Steel Bottom Bar Slide Locks

Optional Motor Operation

LEED

Made in the USA

Environmental Assurance

Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.
