Amarr 2042
- 2" Extra Heavy-Duty
- High energy efficiency
- Extra heavy-duty 20ga steel
- Flush modern look
Product Documents
-
Amarr 2042 Polyurethane High R-Value 2” Door - Extra Heavy-Duty
-
Product Brochure
-
Installation Instructions
-
Warranty
Overview
Door Options
Drawings
Brochures & Install Instructions
Reviews
Insulation
Our polyurethane insulation provides the best R-values per inch when compared to other common types of sectional door insulation.
Specifications Chart
| Amarr 2042 | |
|---|---|
| Door Thickness | 2" (5.1cm) |
| Panel | Flush |
| Steel Thickness | 20 Gauge |
| Exterior Texture | Stucco |
| Limited Warranty | 10 Years |
| U-factor | 0.19 |
| R-value | 19.4 |
| Max Std Width | 32'2" |
| Max Std Height | 26'1" |
Features & Options
Energy Efficient
SuperFlex Impact
Rapid Install Vertical Lift
LEED
Made in the USA
Wind Load
Environmental Assurance
Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.
Panel

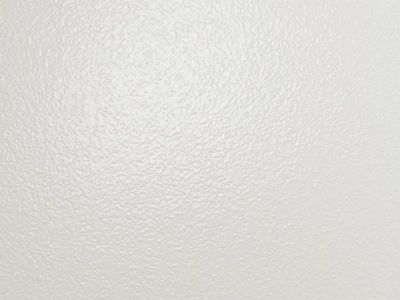

Flush Stucco
Construction
3-Layer
Window
24" x 6" insulated
24" x 8" insulated
24" x 12" insulated
26" x 13" insulated
Color Options
More than 800 factory-applied colors available. See Amarr Color Zone page for more information.
Drawings
-
Amarr 2042 Polyurethane High R-Value 2” Door - Extra Heavy-Duty
3 Parts Specification
-
Amarr 2042 Polyurethane High R-Value 2” Door - Extra Heavy-Duty
Framing Details
-
Concrete
-
Steel
-
Wood
Jamb Details
-
Concrete
-
Steel
-
Wood
Track Details
-
2” Angle Mount
-
2” Bracket Mount
-
2" Reverse Angle Mount - Offset Jamb Brackets
-
3" Angle Mount
-
3” Tapered Reverse Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Bracket
-
2” Angle Mount
-
2” Bracket Mount
-
2" Reverse Angle Mount - Offset Jamb Bracket
-
3" Angle Mount
-
3” Tapered Reverse Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Bracket
-
2” Angle Mount
-
2” Bracket Mount
-
2" Reverse Angle Mount - Offset Jamb Bracket
-
3" Angle Mount
-
3” Tapered Reverse Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Bracket
-
2” Angle Mount
-
2” Bracket Mount
-
2" Reverse Angle Mount - Offset Jamb Bracket
-
3" Angle Mount
-
3” Tapered Reverse Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Bracket
-
2” Angle Mount
-
2” Bracket Mount
-
2" Reverse Angle Mount - Offset Jamb Brackets
-
3" Angle Mount
-
3” Tapered Reverse Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Brackets
-
2” Angle Mount
-
2” Bracket Mount
-
2" Reverse Angle Mount - Offset Jamb Brackets
-
3" Angle Mount
-
3” Tapered Reverse Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Brackets
-
2” Angle Mount
-
2” Bracket Mount
-
2" Reverse Angle Mount - Offset Jamb Brackets
-
3" Angle Mount
-
3” Tapered Reverse Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Brackets
-
2” Angle Mount
-
2" Reverse Angle Mount - Offset Jamb Brackets
-
3" Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Brackets
Standard Lift
Standard Lift Follow The Roof Pitch
Low Headroom Torsion To The Front
Low Headroom Torsion To The Rear
High Lift
High Follow The Roof Pitch
Vertical Lift
Rapid Install Vertical Lift
