Amarr 2442
- 2" Heavy-Duty
- High energy efficiency
- Best selling insulated commercial door
- Flush panel design for modern look
Product Documents
-
Amarr 2442 Polyurethane Insulated 2” Door - Heavy-Duty
-
Product Brochure
-
Installation Instructions
-
Warranty
Overview
Door Options
Drawings
Brochures & Install Instructions
Reviews
Overview

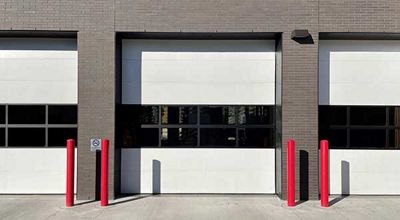

New 24-gauge steel triple-layer commercial door using foamed-in-place polyurethane insulation creating a strong monolithic panel that is energy efficient.
Insulation
Our best insulating U-factor of 0.19 for a 2" triple-layer constructed polyurethane insulated commercial overhead door.
Specification Chart
| Amarr 2442 | |
|---|---|
| Door Thickness | 2" (5.1cm) |
| Panel | Flush |
| Steel Thickness | 24 Gauge |
| Exterior Texture | Stucco |
| Limited Warranty | 10-Year |
| U-factor | 0.19 |
| R-value | 19.4 |
| Max Std Width | 32'2" |
| Max Std Height | 26'1" |
Features & Options
Energy Efficient
SuperFlex Impact
Rapid Install Vertical Lift
LEED
Made in the USA
Wind Load
Environmental Assurance
Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.
Panel
Flush

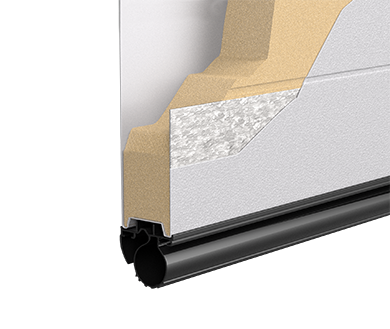

Construction
3-Layer
Window
24" x 6" insulated
24" x 12" insulated
26" x 13" insulated
24" x 8" insulated

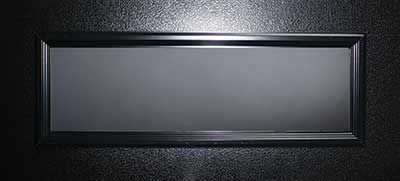

41" x 13" insulated
Colors options
More than 800 factory-applied colors available. See Amarr Color Zone page for more information.
Drawings
-
Amarr 2442 Polyurethane Insulated 2” Door - Heavy-Duty
3 Parts Specification
-
Amarr 2442 Polyurethane Insulated 2” Door - Heavy-Duty
Framing Details
-
Concrete
-
Steel
-
Wood
Jamb Details
-
Concrete
-
Steel
-
Wood
Track Details
-
2” Angle Mount
-
2” Bracket Mount
-
2" Reverse Angle Mount - Offset Jamb Brackets
-
3" Angle Mount
-
3” Tapered Reverse Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Bracket
-
2” Angle Mount
-
2” Bracket Mount
-
2" Reverse Angle Mount - Offset Jamb Bracket
-
3" Angle Mount
-
3” Tapered Reverse Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Bracket
-
2” Angle Mount
-
2” Bracket Mount
-
2" Reverse Angle Mount - Offset Jamb Bracket
-
3" Angle Mount
-
3” Tapered Reverse Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Bracket
-
2” Angle Mount
-
2” Bracket Mount
-
2" Reverse Angle Mount - Offset Jamb Bracket
-
3" Angle Mount
-
3” Tapered Reverse Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Bracket
-
2” Angle Mount
-
2” Bracket Mount
-
2" Reverse Angle Mount - Offset Jamb Brackets
-
3" Angle Mount
-
3” Tapered Reverse Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Brackets
-
2” Angle Mount
-
2” Bracket Mount
-
2" Reverse Angle Mount - Offset Jamb Brackets
-
3" Angle Mount
-
3” Tapered Reverse Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Brackets
-
2” Angle Mount
-
2” Bracket Mount
-
2" Reverse Angle Mount - Offset Jamb Brackets
-
3" Angle Mount
-
3” Tapered Reverse Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Brackets
-
2” Angle Mount
-
2" Reverse Angle Mount - Offset Jamb Brackets
-
3" Angle Mount
-
3" Reverse Angle Mount - Offset Jamb Brackets
