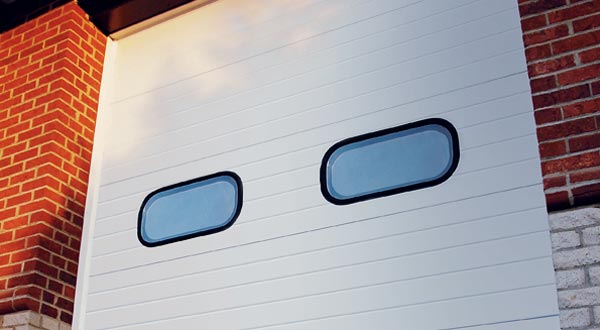

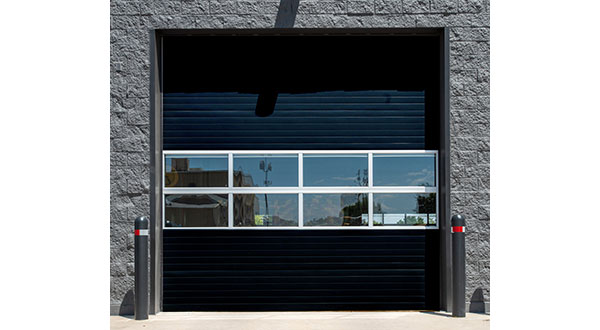

Amarr 2742 - Energy Efficient Polyurethane Insulated Commercial Steel Door

Amarr 2742 - Energy Efficient Polyurethane Insulated Commercial Steel Door

Amarr 2742 - Energy Efficient Polyurethane Insulated Commercial Steel Door

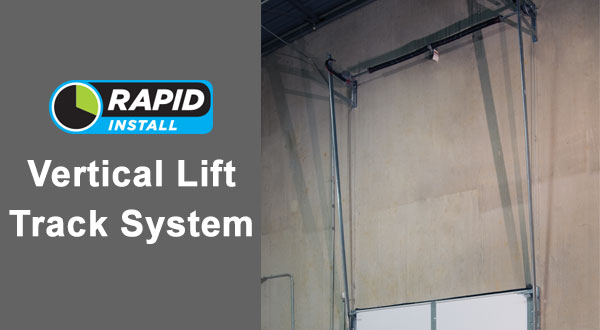

Rapid Install Vertical Lift Track System

Amarr 2742New

2" Heavy-Duty
High energy efficiency
Best selling insulated commercial door
Pencil groove design for added strength

Product Documents

Amarr 2742 Polyurethane High R-Value 2” Door - Heavy-Duty
Product Brochure
Installation Instructions
Warranty

Overview

Door Options

Drawings

Brochures & Install Instructions

Reviews

Overview

Amarr’s most-popular high R-value door is constructed with a thermal break, and uses foamed-in-place polyurethane insulation creating a strong monolithic panel that is energy efficient.

Insulation

Our best insulating R-value of 19.4 for a 2" triple-layer constructed polyurethane insulated commercial overhead door.

Specification Chart

	Amarr 2742
Door Thickness	2" (5.1cm)
Panel	Pencil Groove
Steel Thickness	27 Gauge
Exterior Texture	Stucco
Limited Warranty	10-Year
U-factor	0.19
R-Value	19.4
Max Std Width	32'2"
Max Std Height	26'1"

Features & Options

Energy Efficient

SuperFlex Impact

Rapid Install Vertical Lift

LEED

Made in the USA

Wind Load

Environmental Assurance

Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.

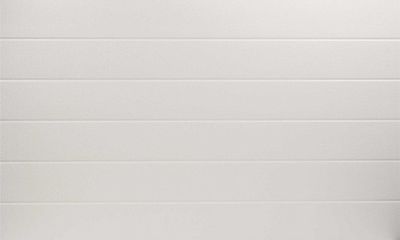

Panel

Pencil Groove

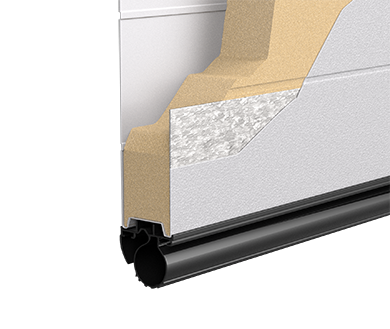

Construction

3-Layer

Window

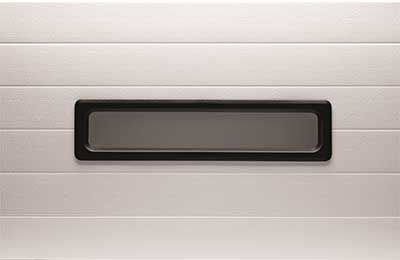

24" x 6" insulated

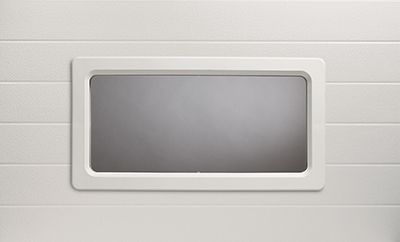

24" x 12" insulated

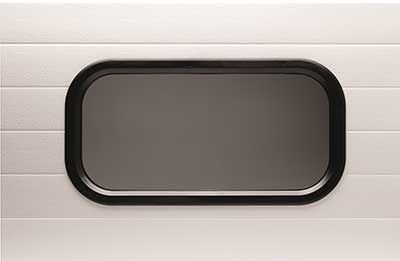

26" x 13" insulated

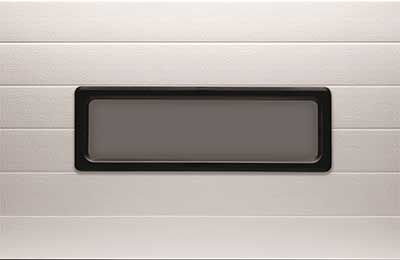

24" x 8" insulated

Colors options

Color Zone Painted Garage Door

More than 800 factory-applied colors available. See Amarr Color Zone page for more information.

Drawings

Amarr 2742 Polyurethane High R-Value 2” Door - Heavy-Duty

3 Parts Specification

Amarr 2742 Polyurethane High R-Value 2” Door - Heavy-Duty

Framing Details

Concrete
Steel
Wood

Jamb Details

Concrete
Steel
Wood

Track Details

Standard Lift

2” Angle Mount
2” Bracket Mount
2" Reverse Angle Mount - Offset Jamb Brackets
3" Angle Mount
3” Tapered Reverse Angle Mount
3" Reverse Angle Mount - Offset Jamb Bracket

Standard Lift Follow The Roof Pitch

2” Angle Mount
2” Bracket Mount
2" Reverse Angle Mount - Offset Jamb Bracket
3" Angle Mount
3” Tapered Reverse Angle Mount
3" Reverse Angle Mount - Offset Jamb Bracket

Low Headroom Torsion To The Front

2” Angle Mount
2” Bracket Mount
2" Reverse Angle Mount - Offset Jamb Bracket
3" Angle Mount
3” Tapered Reverse Angle Mount
3" Reverse Angle Mount - Offset Jamb Bracket

Low Headroom Torsion To The Rear

2” Angle Mount
2” Bracket Mount
2" Reverse Angle Mount - Offset Jamb Bracket
3" Angle Mount
3” Tapered Reverse Angle Mount
3" Reverse Angle Mount - Offset Jamb Bracket

High Lift

2” Angle Mount
2” Bracket Mount
2" Reverse Angle Mount - Offset Jamb Brackets
3" Angle Mount
3” Tapered Reverse Angle Mount
3" Reverse Angle Mount - Offset Jamb Brackets

High Follow The Roof Pitch

2” Angle Mount
2” Bracket Mount
2" Reverse Angle Mount - Offset Jamb Brackets
3" Angle Mount
3” Tapered Reverse Angle Mount
3" Reverse Angle Mount - Offset Jamb Brackets

Vertical Lift

2” Angle Mount
2” Bracket Mount
2" Reverse Angle Mount - Offset Jamb Brackets
3" Angle Mount
3” Tapered Reverse Angle Mount
3" Reverse Angle Mount - Offset Jamb Brackets

Rapid Install Vertical Lift

2” Angle Mount
2" Reverse Angle Mount - Offset Jamb Brackets
3" Angle Mount
3" Reverse Angle Mount - Offset Jamb Brackets

Brochures & Installation

Amarr Commercial Polyurethane Doors

Amarr Color Zone

Amarr Rapid Install

Amarr SuperFlex

Amarr Superflex Install and Owners Manual

Amarr Consolidated Commercial Warranty

Amarr Complete Commercial Installation Instructions
