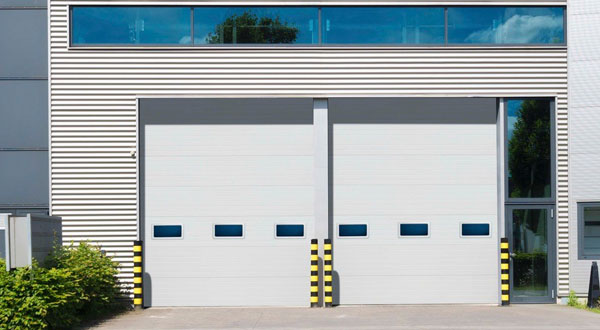

Amarr 2743 - Energy Efficient Polyurethane Insulated Commercial Steel Door

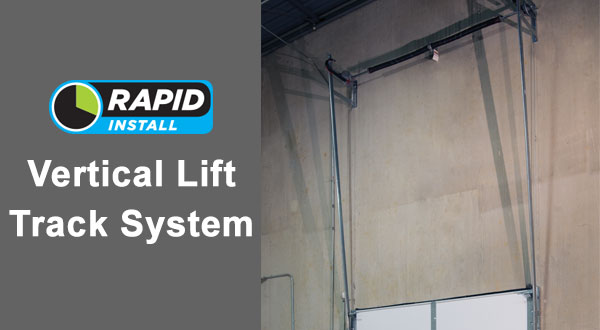

Rapid Install Vertical Lift Track system

Amarr 2743New

This Super-Duty top-of-the-line high R-value door is constructed using 27-gauge exterior steel and foamed-in-place polyurethane insulation with a superior energy efficient R-value of 28.0.

Product Documents

Amarr 2743 Polyurethane High R-Value 3” Door - Super-Duty
Product Brochure
Installation Instructions
Warranty

Overview

Door Options

Drawings

Brochures & Install Instructions

Reviews

Insulation

Our polyurethane insulation provides the best R-values per inch when compared to other common types of sectional door insulation.

Specifications Chart

	Amarr 2743
Door Thickness	3"
Panel	Pencil Groove
Steel Thickness	27 Gauge
Exterior Texture	Stucco
Limited Warranty	10 Years
U-factor	0.17
R-value	28.0
Max Std Width	32'2"
Max Std Height	26'1"

Features & Options

Energy Efficient

Rapid Install Vertical Lift

LEED

Made in the USA

Wind Load

Environmental Assurance

Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.

Section Design

Pencil Groove

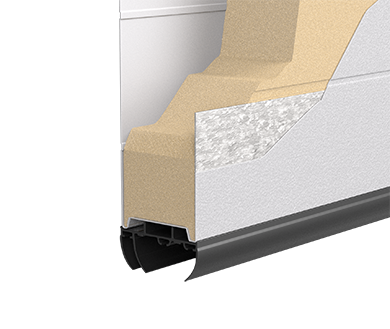

Construction

3-Layer

Panel Options

24" x 8" insulated

24" x 12" insulated

Color Options

More than 800 factory-applied colors available. See Amarr Color Zone page for more information.

Drawings

Amarr 2743 Polyurethane High R-Value 3” Door - Super-Duty

3 Parts Specification

Amarr 2743 Polyurethane High R-Value 3” Door - Super-Duty

Framing Details

Concrete
Steel
Wood

Jamb Details

Concrete
Steel
Wood

Track Details

Standard Lift

2” Angle Mount
2” Bracket Mount
2" Reverse Angle Mount - Offset Jamb Brackets
3" Angle Mount
3” Tapered Reverse Angle Mount
3" Reverse Angle Mount - Offset Jamb Bracket

Standard Lift Follow The Roof Pitch

2” Angle Mount
2” Bracket Mount
2" Reverse Angle Mount - Offset Jamb Bracket
3" Angle Mount
3” Tapered Reverse Angle Mount
3" Reverse Angle Mount - Offset Jamb Bracket

Low Headroom Torsion To The Front

2” Angle Mount
2” Bracket Mount
2" Reverse Angle Mount - Offset Jamb Bracket
3" Angle Mount
3” Tapered Reverse Angle Mount
3" Reverse Angle Mount - Offset Jamb Bracket

Low Headroom Torsion To The Rear

2” Angle Mount
2” Bracket Mount
2" Reverse Angle Mount - Offset Jamb Bracket
3" Angle Mount
3” Tapered Reverse Angle Mount
3" Reverse Angle Mount - Offset Jamb Bracket

High Lift

2” Angle Mount
2” Bracket Mount
2" Reverse Angle Mount - Offset Jamb Brackets
3" Angle Mount
3” Tapered Reverse Angle Mount
3" Reverse Angle Mount - Offset Jamb Brackets

High Follow The Roof Pitch

2” Angle Mount
2” Bracket Mount
2" Reverse Angle Mount - Offset Jamb Brackets
3" Angle Mount
3” Tapered Reverse Angle Mount
3" Reverse Angle Mount - Offset Jamb Brackets

Vertical Lift

2” Angle Mount
2” Bracket Mount
2" Reverse Angle Mount - Offset Jamb Brackets
3" Angle Mount
3” Tapered Reverse Angle Mount
3" Reverse Angle Mount - Offset Jamb Brackets

Rapid Install Vertical Lift

2” Angle Mount
2" Reverse Angle Mount - Offset Jamb Brackets
3" Angle Mount
3" Reverse Angle Mount - Offset Jamb Brackets

Brochures & Install Instructions

Amarr Commercial Polyurethane Doors

Amarr Color Zone

Amarr Rapid Install

Amarr Consolidated Commercial Warranty

Amarr Complete Commercial Installation Instructions
